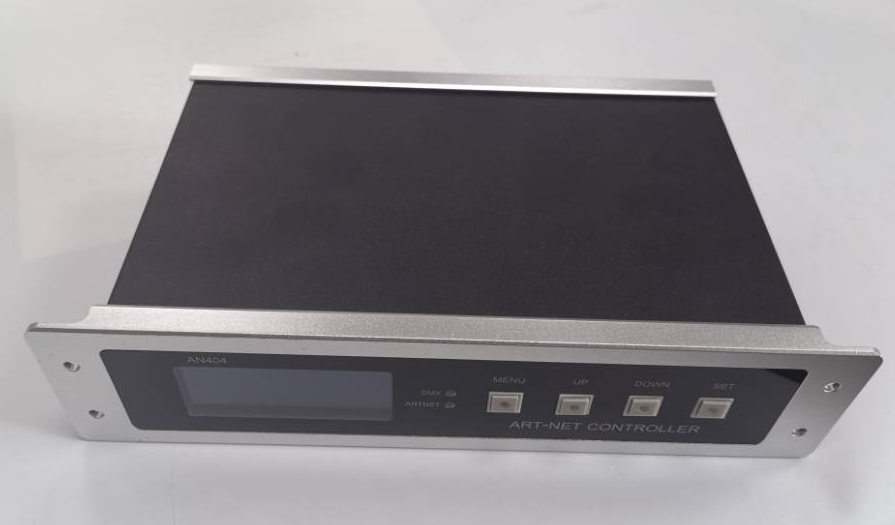

This product supports DMX and ART_NET signal input, hand-in-hand cascade, SPI+485 remote transmission and 19-inch cabinet for easy management.
Features:
◆ with ART_NET (MARIX,MADMAPPER,ARENA,MA and other software) recording and playing function;
◆ built-in bright weft power supply, support wide voltage input;
◆ ART_NET independent working mode;
◆ DMX call built-in SD card effect mode;
◆ multiple network wire cascade, simple wiring;
◆ support space point setting function;

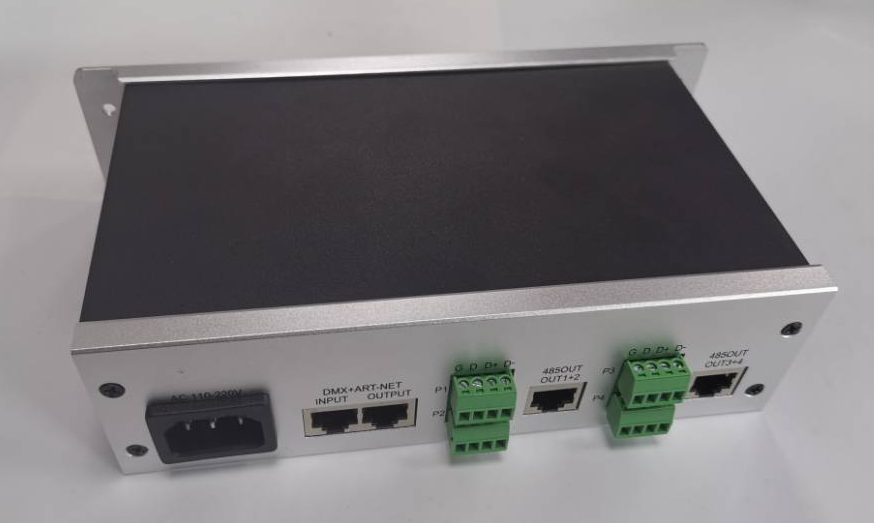

◆ 4 ports output, each port 680PIX;
◆ output signal support 485, can be 100 meters distance transmission;
Application:
This product can be widely used in stage lighting, bar atmosphere foil, KTV project advertising display screen, planetarium and science museum, dance lighting effect.
ART_NET+DMX Port definion:
ART_NET+DMX Port Usage Instructions

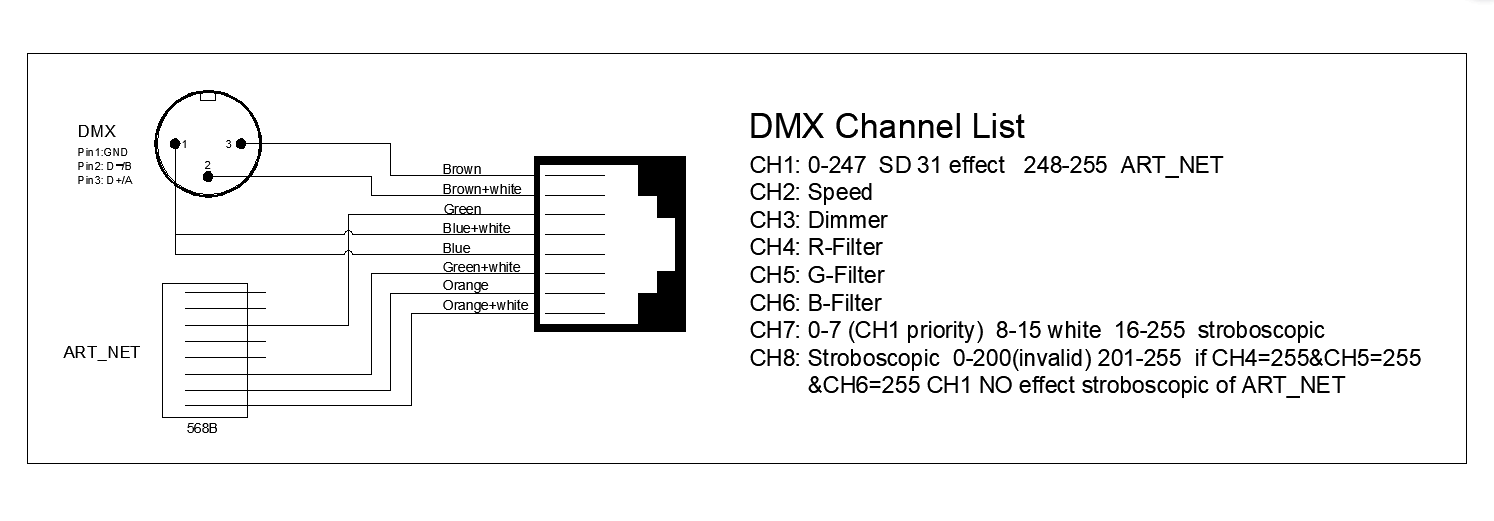

1. For the convenience of connecting customers, we combine the ART_NET network cable and DMX signal line.
2, in use, our company will be equipped with two in and one out of the plug has been convenient to try out, to avoid wrong connection.
3, DMX and ART_NET signal only one or no AN404 automatic switch: only ART_NET signal time, AN404 automatic switch to ART_NET online mode, output effect only according to the output ART_NET signal software play; When ART_NET and DMX enter at the same time, AN404 takes priority to SD card mode. AN404 can switch to ART_NET mode through DMX channel 1. Only DMX signal input time, AN404 for SD card mode, DMX channel calls SD card internal effect and adjust the relevant speed color. ; No signal input, AN404 for SD card mode, by pressing the button to select their own effects.
u DMX Channel Table Description
|
Channel |
Name |
Figure |
Instructions |
|
1 |
Mode selection |
000-247 |
Call internal 31 effects (one effect for every 8 addresses, and 0-7 for SD card effect 1) |
|
|
|
248-255 |
Switch to ART_NET mode |
|
2 |
Speed |
000-255 |
0 is the slowest speed, 255 is the fastest speed, SD card mode is valid |
|
3 |
Brightness |
000-255 |
0 is the brightness off, 255 is the brightest, SD card mode is valid |
|
4 |
R- mask |
000-255 |
Subtract red from the effect. 000 is the original effect, and 255 means subtract all red from the effect |
|
5 |
G- mask |
000-255 |
Subtract green from the effect. 000 is the original effect, and 255 is subtracting all green from the effect |
|
6 |
B- mask |
000-255 |
Subtract the blue in the effect. 000 is the original effect. 255 means subtract all the blue in the effect |
|
7 |
invalid |
000-007 |
|
|
|
Normally on |
008-015 |
Constant bright white, color selection by mask (brightness, mask channel available) |
|
|
stroboscopic |
016-255 |
The higher the value, the faster the strobe (speed, brightness, mask channel is effective) |
|
8 |
invalid |
000-200 |
|
|
|
record |
201-255 |
When the value of channel 4.5.6 is 255, the recording is valid and the ART_NET effect is recorded to the file specified by channel 1 |
